Accelerated AI Surveillance Server

NViS6708

The NViS6708 2U Rackmount NVR features a 13th / 14th Gen Intel® Core™ processor with up to 16 cores, supporting 64GB DDR4 memory. It offers DP1.4, HDMI2.0b/1.4, Intel UHD Graphics 770, 4-bay RAID, NVMe/M.2 SSD support, dual 2.5GbE ports, USB 3.1/2.0, and PCIe expansion for stream acceleration and AI, ideal for high-quality digital recording.
  • System 2U Rackmount
  • Support 14th / 13th Generation Intel® Core™
  • Single 600W Power Supply
  • Expansion Slot, 1 x PCIe by 16 Slots, support x 16 lanes
  • DDR4, up to 64GB
  • HDD 8 Bays 3.5”(Supports 2 group 4 HDDs in RAID 5,10)
  • 1 x NVME SSD, 1 x M.2 2242 SATA SSD
  • Display DP1.4, HDMI 2.0b x 1, HDMI 1.4 x 1
  • 2 X 2.5GbE Intel Ethernet
  • Audio in/out, Mic
  • 1 x PCIe x16
  • BIOS customization support
  • CE / FCC Class A, UL Compliance
Please contact our [sales team] for more information.
Processor Intel® Core™ Ultra Processor (Series 2)
Memory 2 x DDR5 6400 C/SO-DIMM, non-ECC, up to 64GB
Support OOB ECC in W880 (optional)
Chipset Intel® Q870 (option W880)
I/O Interface Front 2 x USB 2.0 Type-A (Per port output Max 500mA)
I/O Interface Rear 4 x USB 3.2 Gen 1, Type-A (Per port output Max 900mA)
1 x DP 1.4 (4K@60fps)
1 x HDMI® 2.0b (4K@60fps)
2 x 2.5GbE RJ45 port
Storage HDD 2 Bays 3.5”, supports RAID 0,1
2 x M.2 Key M 2280 (1 x NVMe Gen5 and 1 x NVMe Gen4)
1 x M.2 Key B 2242 (NVMe SATA)
Power Supply Single PSU 300W

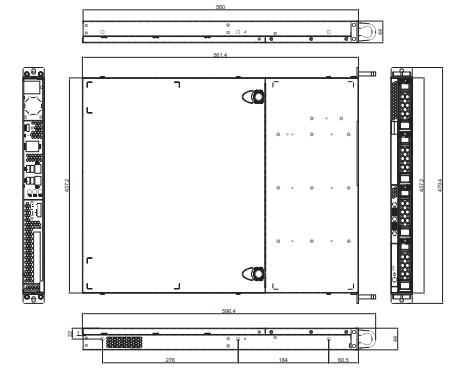

Dimensions 482.45mm (W) x 43.5mm (H) x 576.63mm (D)
Operating Temperature Ambient with air flow: 0°C~40°C
Storage temperature: -20°C~70°C
Humidity 0%~90% (non-condensing)
Certifications CE approval
FCC Class A
CB/UL Option
