Visions AI Surveillance Server

NVAiS1502

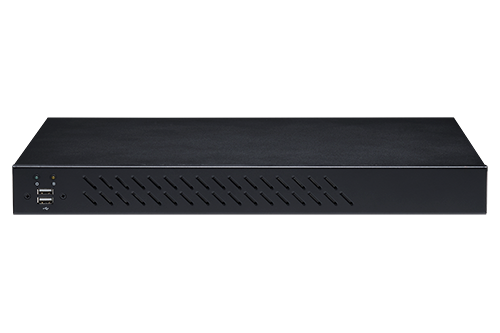

The NVAiS 1502 is a 1U rackmount AI NVR workstation powered by the Intel® Core™ Ultra Processor (Series 2) with integrated NPU, delivering up to 13–36 platform TOPS to accelerate machine learning, reduce CPU workload by up to 70%, and enable real-time inference and generative AI applications. It supports up to 64GB of DDR5 memory, Intel® Arc™ (Xe-Core) Graphics, dual 2.5GbE networking, DP 1.4 and HDMI® 2.0b display outputs, and flexible storage with dual NVMe SSDs and two 3.5" HDD bays supporting RAID 0/1, making it ideal for intensive AI and multimedia security applications.
  • System Compact Embedded Platform
  • Support Intel® Arrow Lake-S Core Ultra 200 Series
  • DDR5 SO-DIMM, up to 64GB
  • Dual Display Output, HDMI x 1, DP x 1
  • 2 x Ethernet, support Intel 10/100/1000/2.5GbE
  • HDD 2 Bays 3.5” (Supports RAID 0,1, up to 22TB per drive)
  • 2 x M.2 2280 NVMe SSD (Supports RAID 0,1)
  • 1 x M.2 2242 B-Key SSD
  • GPIO, 4 x Input / 2 x Output (Optional)
  • CE / FCC, UL Compliance

    Please contact our [sales team] for more information.
Processor Intel® Core™ Ultra Processor (Series 2)
Memory 2 x DDR5 6400 C/SO-DIMM, non-ECC, up to 64GB
Support OOB ECC in W880 (optional)
Chipset Intel® Q870 (option W880)
I/O Interface Front 2 x USB 2.0 Type-A (Per port output Max 500mA)
I/O Interface Rear 4 x USB 3.2 Gen 1, Type-A (Per port output Max 900mA)
1 x DP 1.4 (4K@60fps)
1 x HDMI® 2.0b (4K@60fps)
2 x 2.5GbE RJ45 port
Storage HDD 2 Bays 3.5”, supports RAID 0,1
2 x M.2 Key M 2280 (1 x NVMe Gen5 and 1 x NVMe Gen4)
1 x M.2 Key B 2242 (NVMe SATA)
Power Supply Single PSU 300W

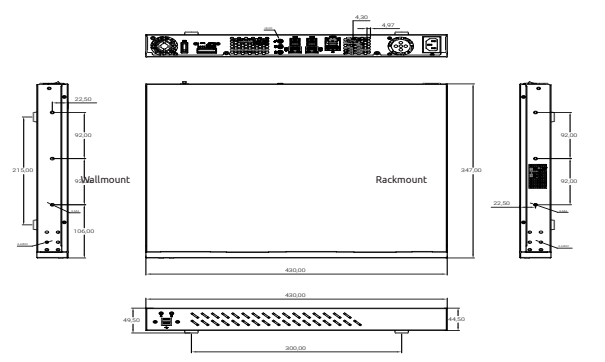

Dimensions 482.45mm (W) x 43.5mm (H) x 576.63mm (D)
Operating Temperature Ambient with air flow: 0°C~40°C
Storage temperature: -20°C~70°C
Humidity 0%~90% (non-condensing)
Certifications CE approval
FCC Class A
CB/UL Option
Please contact our sales team for more information.
