Dome/Fixed Network Cameras

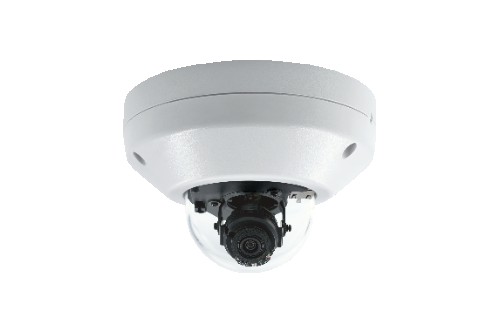

NCi-524C-RF

5MP Compact Indoor Micro Dome Camera, Fixed 2.8mm Lens, Smart IR up to 20M, WDR 120dB, Edge AI Analytics, NDAA Compliant
  • 1/2.8" 5MP CMOS Progressive Sensor
  • Fixed Lens 4.0mm, F2.8
  • Field of View: H: 80°, V: 58.1°, D: 106.7°
  • DOL WDR 120dB
  • Smart IR, effective distance up to 20M
  • H.265, H.264, M-JPEG Video Compression
  • Smart GOP Compression
  • Digital Image Stabilization (DIS)
  • Edge AI Analytics: Line Crossing, Object Counting, Zone Object Counting, Zone Intrusion, Loitering, Wrong Way, Left, Remove
  • Two-way Audio, G.711 8KHz/8 bits (A-Law/U-Law)
  • ONVIF S, G, T, M Compliant
  • PoE IEEE 802.3af, Class 3
  • MicroSDXC up to 1.5TB Edge Storage
  • Operating Temperature: –20°C to 50°C (IR on), –20°C to 60°C (IR off)
  • NDAA Compliance
Please contact our sales team for more information.
Camera General Information
Image Sensor 1/2.8” 5MP CMOS Progressive Sensor
Resolution 2592 x 1944
Lens Fixed lens, 4.0mm, F2.8
Field of View H: 80°, V: 58.1°, D: 106.7°
Day / Night True Day / Night
Smart IR Effective distance is up to 20M (6.51ft)
WDR 120dB
Minimum Illumination Color 0.15 lux
B/W 0 lux
Image Enhance Brightness, Contrast, Saturation, Sharpness, Mirror, Flip, Corridor, Anti-flicker, BLC, AWB
Defog Support
Digital Image Stabilization (DIS) Support
Analytics (In-house VA) Line Crossing, Object-Counting, Zone Object-Counting, Zone Intrusion, Loitering, Wrong Way, Left, Remove
Video and Audio
Video Compression H.265 / H.264 / M-JPEG
Smart Compression Smart GOP
Video Resolution 2592 x 1944 to 640x480
Video Quality CBR, VBR, MJPEG
Frame Rate (Max Resolution) Up to 30fps
Frame Rate (Multi-Stream) Up to 30fps 2592x1944 (H.264) +
30fps 1280x720 (H.264) +
15fps 640x480 (MJPEG)
Audio Streaming Two-way
Audio Compression G.711 8KHz/8 bits (A-Law/U-Law)
Network
Interface 10/100 Mbps Ethernet, RJ45
Browser Edge, Chrome, Firefox, Safari
ONVIF ONVIF S, G, T, M
Event Management
Event Trigger Motion detection, Tampering Alarm, Alarm In
Notifications Send message via e-mail / Record to FTP/NAS/SD card, record JPG/mp4
General
Power PoE IEEE 802.3af, Class 3
Power Consumption PoE: IR OFF 5.2W max; IR ON 6.5W max
Audio In/Out Port Line-in x 1 ; Line-out x 1
Local Storage MicroSDXC Card Slot x 1 (Max. capacity 1.5TB)
Operating Temperature -20°C (-4°F) to +50°C (122°F) (IR on)
-20°C (-4°F) to +60°C (140°F) (IR off)
Storage Temperature -40°C (-40°F) to +60°C (140°F)
Humidity 10% to 90% RH (non-condensing)
Regulation CE/FCC/UL
Waterproof NA
Vandal Resistant NA
Application SDK available for application development
Packaging Information
Weight 392g
Dimension Ø108mm x H 74.5mm (without mounting plate)
