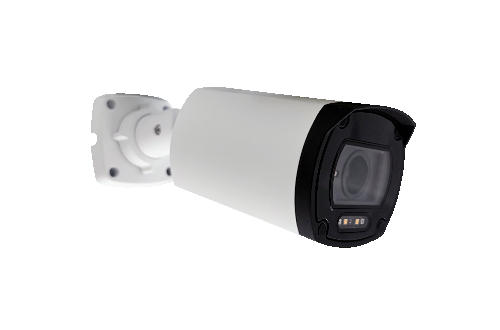

Bullet Network Camera

NCr-553C-R1Z

5MP Outdoor Bullet Camera, Dual Light (White Light/Smart IR) up to 30M, Motorized Varifocal Lens, DOL WDR 120dB, Deep Learning Edge Analytics, IK10, IP67
  • 1/2.8" 5MP CMOS Progressive Sensor
  • Motorized Lens 3.29–10.64mm, F1.65
  • Field of View: H: 103.6°–28.5°, V: 75.5°–21.4°, D: 143.8°–35.7°
  • DOL WDR up to 120dB
  • Dual Light: Smart IR up to 30M / White LED up to 10M
  • H.265, H.264, M-JPEG Video Compression
  • Smart GOP Compression
  • Deep Learning Analytics: Line Crossing, Object Counting, Zone Object Counting, Zone Intrusion, Loitering, Wrong Way, Left, Remove
  • Two-way Audio, G.711 8KHz/8 bits (A-Law/U-Law)
  • ONVIF S, G, T, M Compliant
  • PoE IEEE 802.3af, Class 3 / DC 12V
  • MicroSDXC up to 1TB Edge Storage
  • Operating Temperature: –40°C to 50°C (IR off), –20°C cold start
  • IP67 Weatherproof, IK10 Vandal Resistant
  • NDAA Compliance
For more information, please feel free to contact our sales team.
Camera General Information
Image Sensor 1/2.8” 5MP CMOS Progressive Sensor
Resolution Up to 30fps 5MP (2592 x 1944)
Lens Motorized 3.29–10.64mm, F1.65
Field of View D: 143.8°–35.7°
H: 103.6°–28.5°
V: 75.5°–21.4°
Day / Night True Day / Night
Smart IR Effective distance is up to 30M
Effective distance is up to 10M (white LED)
WDR Up to 120 dB depending on scene
Minimum Illumination Color 0.15 lux
B/W 0 lux
Image Enhance Brightness, Contrast, Saturation, Sharpness, Mirror, Flip, Corridor, Anti-flicker, BLC, AWB
Defog Support
Analytics (In-house VA) Line Crossing, Object-Counting, Zone Object-Counting, Zone Intrusion, Loitering, Wrong Way, Left, Remove
Video and Audio
Video Compression H.265 / H.264 / M-JPEG
Smart Compression Smart GOP
Video Resolution 2592 x 1944 to 640x480
Video Quality CBR, VBR, MJPEG
Frame Rate (Max Resolution) Up to 30fps
Frame Rate (Multi-Stream) Up to 30fps 2592x1944 + 30fps 1280x720 +
15fps 640x480 (MJPEG)
Audio Streaming Two-way audio supported
Audio Compression G.711 8KHz/8 bits (A-Law/U-Law)
Network
Interface 10/100/1000 Mbps Ethernet, RJ45
Browser Edge, Chrome, Firefox, Safari
ONVIF ONVIF S, G, T, M
Event Management
Event Trigger Motion detection, Tampering Alarm, Alarm In
Notifications Send message via e-mail / Record to FTP/NAS/SD card, record JPG/mp4
General
Power PoE IEEE 802.3af, Class 3
Power Consumption 7.5W max. (PoE)
Audio In/Out Port Line-in x 1 ; Line-out x 1
DI/DO DI x 1; DO x 1
Micro SD Card Slot microSDXC up to 1TB (does not include SD card)
Operating Temperature –40°C to +50°C (IR off)
–20°C cold start
Storage Temperature –40°C (–40°F) to 60°C (140°F)
Humidity 10% to 90% RH (non-condensing)
Regulation CE/FCC/UL
Waterproof IP67
Vandal Resistant IK10
Application SDK available for application development
Packaging Information
Weight Unit: 775g
Package: 1.13kg

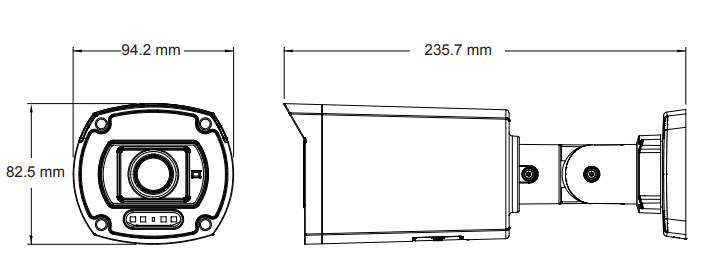

Dimension Unit: 94.2mm x 82.5mm x 235.7mm
Package: 285 x 175 x 125mm per unit
Please contact our sales team for more information.
